Catalyst with Linux
Linux on the Atom Single Board Computer

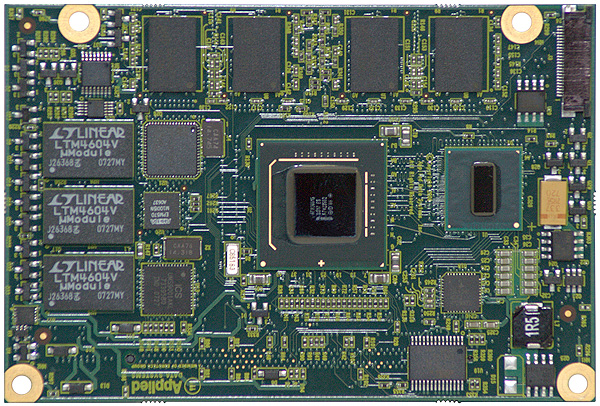

Based on the Intel Atom processor platform, the Catalyst module can be provided with full Linux support out of the box. We offer Intel Moblin and native Debian distributions
Develop advanced Linux solutions without making trade-offs between performance and power consumption with the Catalyst module. With the x86 instruction set, support the full , rich Linux environment including Firefox and other popular browsers.
Other ATOM Single Board Computers with Linux
Module based on the Intel Atom processor platform
ISIS PC/104+ Intel Atom processor board
Stand-alone Intel Atom processor board
Intel Atom processor module aimed at wired and wireless, net-centric multimedia applications
Eurotech's Catalyst leverages the advantages of this Intel technology to provide an ideal Linux solution for high performance, low power applications such as the ruggedized handheld, multimedia, medical, point of service, and industrial designs. Linux will boot from Flash or disk. Catalyst maintains a small form factor and offers comprehensive I/O and multimedia capabilities including high definition graphics while maximizing the MIPS to mW ratio and consuming less than 5W of power per system. The two-card design gives customers flexibility with the adapter board, starting either with a standard version or custom design (by Eurotech or a third party) to meet unique application requirements while reducing time-to-market.
Build low power, fanless Linux solutions based on the latest Intel technology using the Catalyst module.
For more information- Contact Us
Features
Processing unit
- Intel Atom processor with up to 1.6GHz
- 533MHz front side bus
- Intel SCH US 15W
Supported OS
- Windows XP, XP Embedded, CE 6.0
- Embedded Linux
- Specific RTOS support (call for details)
Memory
- 533MHz DDR-2 up to 1GB
- Up to 3 x SD/MMC cards
- Up to 2 x PATA disk drives
Graphics/Video/
Audio
Video interfaces: UXGA, XGA, SXGA, HD
Codecs: H.264, MPEG-4/2/1, Windows Media-9, DivX
Dual independent display output capability
Intel HD Audio
Communications & IO
- Serial ports (RS232, RS485, optically isolated)
- 4 or 5 wire touchscreen interface
- Parallel port
- IrDA interface
- Digital I/O
- Analogue I/O
- CanBUS
- 10/100/1000 LAN
- PCI-Express for high speed I/O
- Mini-PCIe for wireless applications
- Microphone and speaker audio
Management
- Advanced power control
- System health/environmental monitor
- ACPI power management
Peripherals
1 x fast Ethernet port supporting 10/100 BaseT
Physical/Other
Module dimensions 67mm x 100mm
Temp. range up to -40ºC to 85ºC
Power consumption 2W - 3W average per typical application
Maximum sustained power consumption <5W
